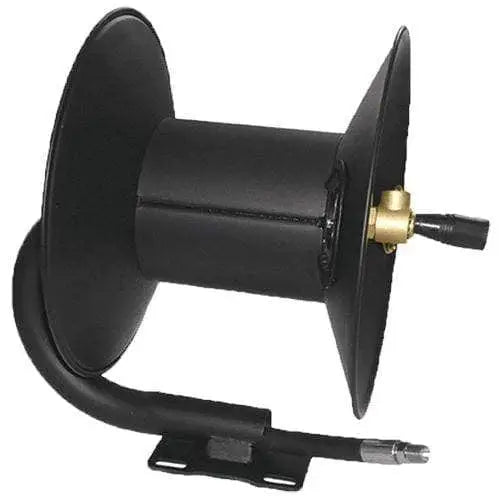

Hose Reel by MTM Hydro (100 feet) offer's a consolidated and organized method for storing your KobraJet hose! Hardware is not included for mounting as this is specific to your setup, however the high grade brass swivel is recognized by many to outperform most other models in the cold water hose reel division.
Simply slide the swivel end of your Kobrajet hose through the opening provided at the side of the reel core and install the 3/8" Male NPT threads into the 3/8" Female NPT threads of the swivel. Do not make a Quick Coupling joint at the swivel as there is not enough space and the bend in the line is too severe. Be sure to allow a small amount of slack at the swivel joint and use the red hose fastener provided to secure the hose at this joint. Using a Whip Line connected to your pump, connect to the 3/8" Male NPT hose reel inlet. When planning, add an extra foot to the distance so as not to bend the Whip Line too severely. Lastly, install the handle with the hardware provided.
Before leaving your hose reel unattended, always engage the locking mechanism on the side of the reel.
This Hose reel is rated for cold water use only with a 12.5" Height x 15.5" Length x 10" Depth.
This model has a fixed pipe with fitting inlet for installation of the whip line, will require a whip line to work.
Bracket Install Holes positioned: 3.25-3.5” horizontally & 3.25-3.5” vertically.
