Description

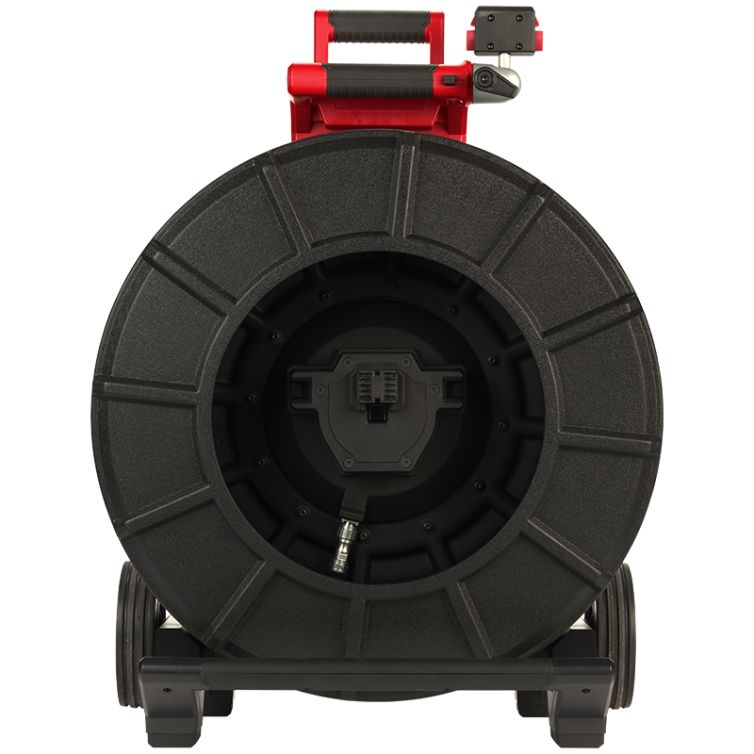

The Milwaukee 200' Pipeline Inspection Reel designed for 3"-10" drain lines is powered by the M18 500 GB Control Hub and is part of the Milwaukee M18 Modular Pipeline Inspection System. Featuring the industry's shortest 34 mm 1080p HD self-leveling camera head, and the ability to digitally zoom up to 4X and optimize light output inside of pipes, technicians can now see more in drain lines than ever before. The sewer line camera has a telescoping handle and wide wheelbase making transportation on and off the job easier than ever. The 200' Pipeline Inspection Reel comes equipped with small and medium camera skids as well as a camera head sleeve to center and protect the camera while inside pipes.
- 1080p camera resolution providing the industry's clearest image inside of drain lines
- 34 mm self-leveling camera head
- 12 mm Push Cable Diameter provides stiffness to push maximum distance
- Powered by the M18 500GB Control Hub
- Telescoping handle and wide wheelbase provide maximum stability
- On board monitor mount for viewing and transportation
- Swap batteries without system shutdown
- Tool only—batteries and chargers sold separately
Specifications
- Product: Pipeline Inspection Reel
- Manufacturer: Milwaukee
- Model: 2974-20
- Push Cable Length: 200'
- Line Capacity: 3" to 10" drain lines
- Push Cable Diameter: 12mm
- Camera Resolution: 1080p
- Camera Head Ingress Protection: IP67
- Sonde Frequency: 512 kHz, 640 kHz, 33kHz
- Line Trace Frequency: 33 kHz, 83 kHz
- Video Display: M18 Wireless Monitor or Milwaukee Pipeline Inspection App
- Weight: 48.3 lbs

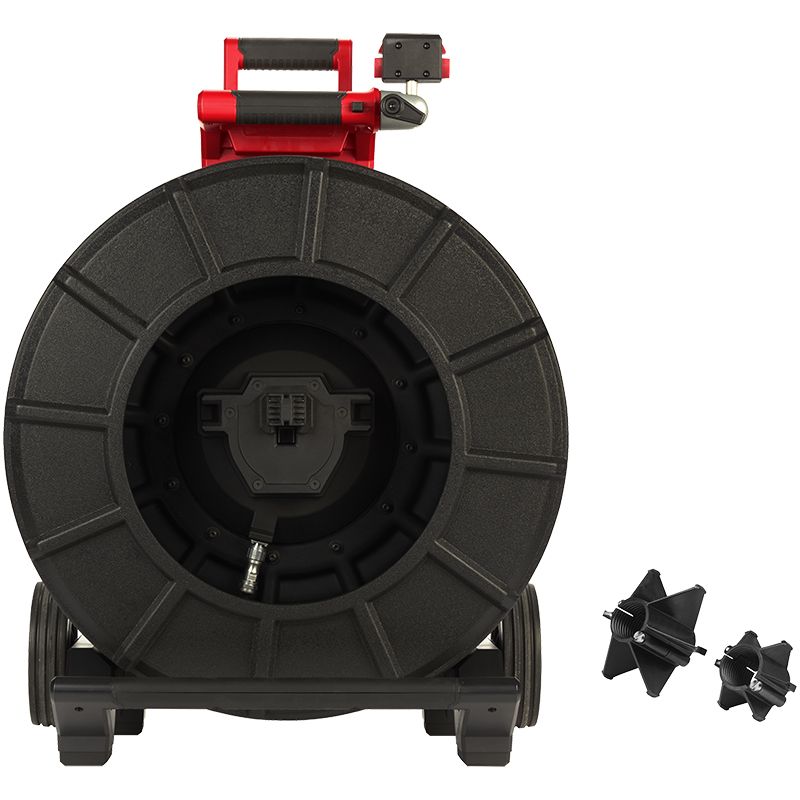

Includes
-
200' Pipeline Inspection Reel (2974-20)
-
(1) Medium camera head skid for 34mm camera
-
(1) Small camera head skid for 34mm camera
